橡胶环形同步带

T型齿橡胶同步带

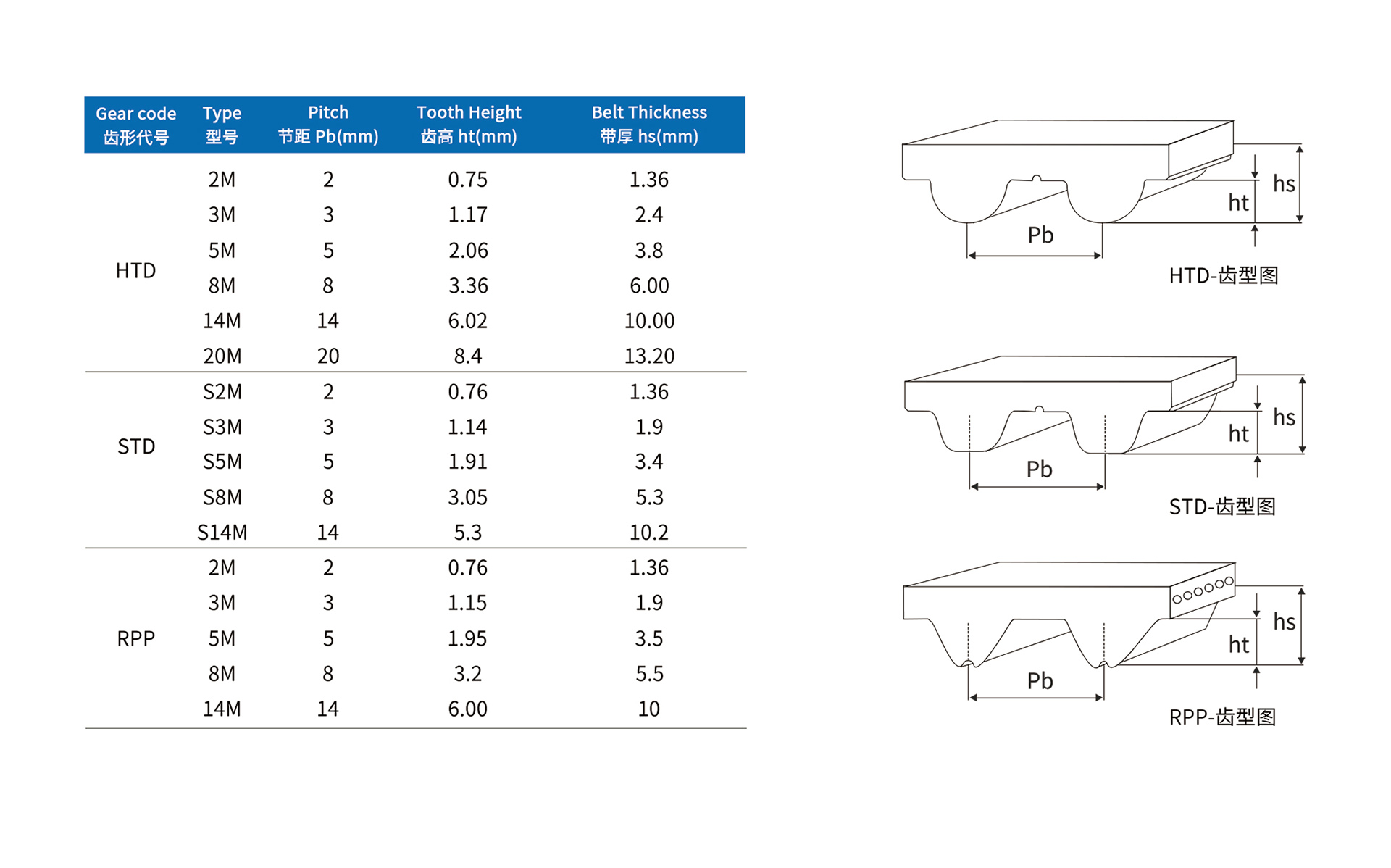

◆ 同步带齿形分类

Classification of synchronous belt teeth

Circle-arc Teeth Industrial Timing Belt 圆弧齿同步带

T Type Industrial Timing Belt T型齿同步带

橡胶同步带采用氯丁橡胶、玻璃纤维绳和弹性尼龙布三种主要材料制成，是用于各类机械传动的一种特种橡胶传送带。它是利用带齿与带齿轮的吻合进行传动，因而兼有齿轮传动、链传动和带传动三者的综合特性。

The rubber synchronous belt is made of three materials:chloroprene rubber, fiber-glass cord and elastic nylon cloth, the rubber synchronous belt is a special kind of rubber driving belt to transmit the mechanical driving force.It transfers the driving force by its gearing with gear wheel,gathering the characters of the gear wheel transmission, chain transmission, and belt transmission.

◆ 橡胶同步带传动具有以下优点

Rubber synchronous belt transmission has the following advantages.

1.保证传动轮间呈无滑差的同步传动

2.传动速比可达到10，传动速度可达到40M/S

3.传动功率可从几瓦到上千瓦

4.传动结构简单轻型，并无需润滑

5.不需要大的初张力，轴负载小

6.运转噪音低

7.维护简单，更换方便等

1.Ensure the synchronous transmission between the transmission wheels without slip

2.The transmission speed ratio can reach up to 10, and the transmission speed can reach 40 m/s.

3.The transmission power can range from a few watts to several kilowatts.

4.Simple transmission mechanism,lightweight, and no lubrication required.

5.No significant initial tension is required, and the shaft load is low.

6.Low operating noise.

7.Easy maintenance and convenient replacement.

因而橡胶同步带已在汽车、化纤、缝纫设备、纺织设备、卷烟机械、造纸、印刷设备、办公设备、通讯、食品机械、小家电、采矿、冶金、钢铁机械、医疗器械、化工、轻工及各种精密机床、仪器等方面广泛应用。

Therefore, rubber timing belts have been widely used in various industries such as automobiles, chemical fibers, sewing equipment, textile equipment, cigarette machinery, papermaking, printing equipment, office equipment, communications, food machinery, small appliances, mining, metallurgy, steel machinery, medical equipment, chemicals, light industry, and various precision machine tools and instruments.
